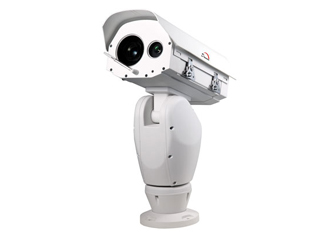

D81 HD Network Heavy-load PTZ Camera

Capable of comtaining 1000mm long focal lens
Night visibility over 200m(Laser/thermal for option)
Integrative structure.Low deflection, low oscillation , high stability enquiry

◆ Humanity design, unique shape, easy installation and maintenance

◆ Imported high-precision steel drive system

◆ High-precision aluminum-alloy synchromesh gear

◆ 1 Alarm Input/1 Output; CAN call Preset or Pattern/Scan after alarm.

Positioning accuracy: 0.01°

◆ Auto angle-calibration function

◆ High-strength aluminum-alloy housing, anti-impact, anti-corrosion,IP66. With wiper and demist function.

◆ Pan:360°,Non-Limited Position, Pitching 128°(+88°~-40°)

◆ Built-in OSD Menu,support changing information and parameter of the dome, support setting and call ing Presets, tour, scan, pattern, camera mode and display name and etc.

◆ Up to 128 presets (titles can be set), support tour and preset running time and speed reserving.

◆ 8 programmable zones with titles,4 patterns, Each records time is not less then 180s

◆ 4 Scan,support scan between left and right limited at an appointed speed.

◆ Park action function, support auto-calling presets or start-up tour, pattern and scan after dome idle for a period of time

◆ Real time function, support pre-setting dome action at an appointed time in any day and month via OSD menu

◆ Built-in memorizer can store parameters of camera & functions of PTZ

◆ Privacy masking, to shield the private region from displaying on the screen;

◆ Power-up function, to set the action when the PTZ reboot

◆ IP66 all-weather protect, built-in constant temperature device

◆ Support Multipliable Network protocol: TCP/IP、UDP、 RTSP、RTCP、HTTP、DDNS、FTP、NTP、PPPOE、SMTP etc

◆ Inner insert Web server, Support IE Explorer video、Parameters、Upgrade、 Manage user permissions.

◆ Built-In ONVIF Protocol, It can computable with others ONVIF Platform or equipments

◆ Built-in TVS4000V lightning-proof, surge-proof and wave-proof
