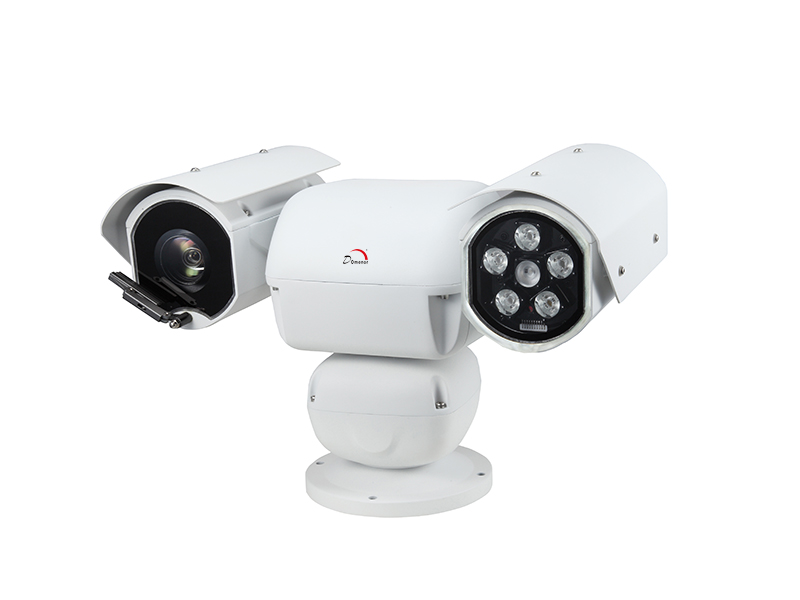

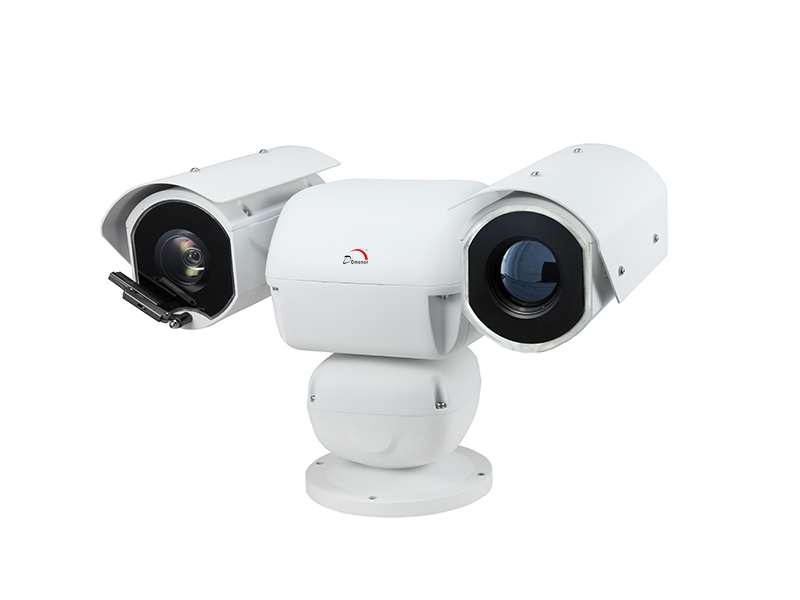

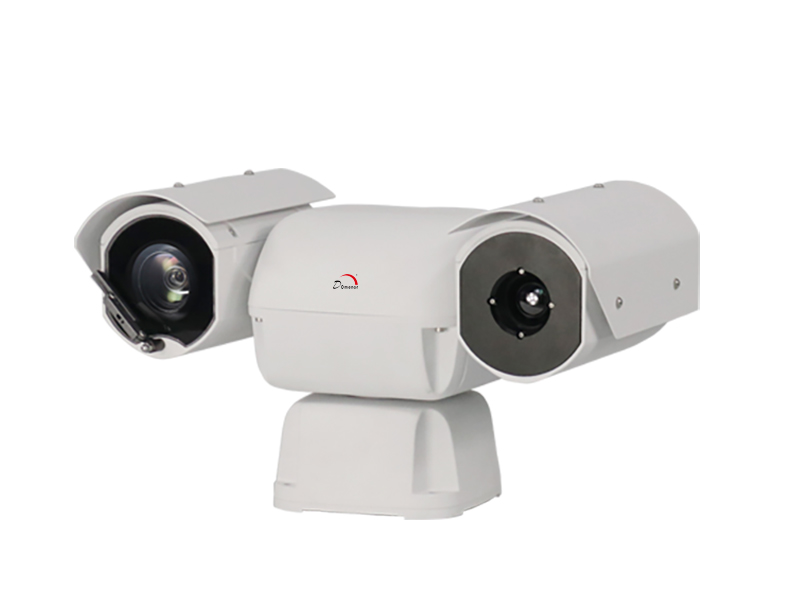

D88 Outdoor High Speed PTZ enquiry

◆ Transmission formats: 1080p/ 720p, transmission distance over 400M.

◆ Humanized design, easy installation& maintenance.

◆ Thermal imaging focal length: 52mm (optional)

◆ 128 presets (titles can be set); Tour is based on presets, speed & park time of presets can be set.

1 Alarm Input/1 Output.

◆ 8 programmable zone with titles,4 pattern( patterned scan),record time no less than 180 seconds.

◆ 4 scan, support scan between left and right limit at an appointed speed.(at this time dome camera still support zooming, tilt operation

◆ Built-in OSD menu, enable changing and displaying Dome information and parameter, setting and calling presets, tour, scan, pattern, camera mode, etc.

◆ Park time function, can auto-call presets or start-up tour, pattern, scan and display areas after dome idle for a period of time

◆ Real time function, preset, scan etc action runs based on time sections pre-setting by OSD menu.

◆ Temperature display function, can survey the temperature inside the dome.

◆ Display horizontal and vertical position of the PTZ camera, and the multiples of the lens.

◆ Privacy masking zone, you can set masking frame  when there is a private zone display on screen.

◆ Communication (support Rs485, Manchester, BI-PHASE code, coaxial video control).

◆ IP66 all-day defend cover, built-in constant temperature device.

◆ Built-in TVS4000V lightning-proof, surge-proof and wave-proof.

◆ Optional freezing rain-proof function (additional power consumption 25W).

◆ Working temperature -40℃~+60℃
