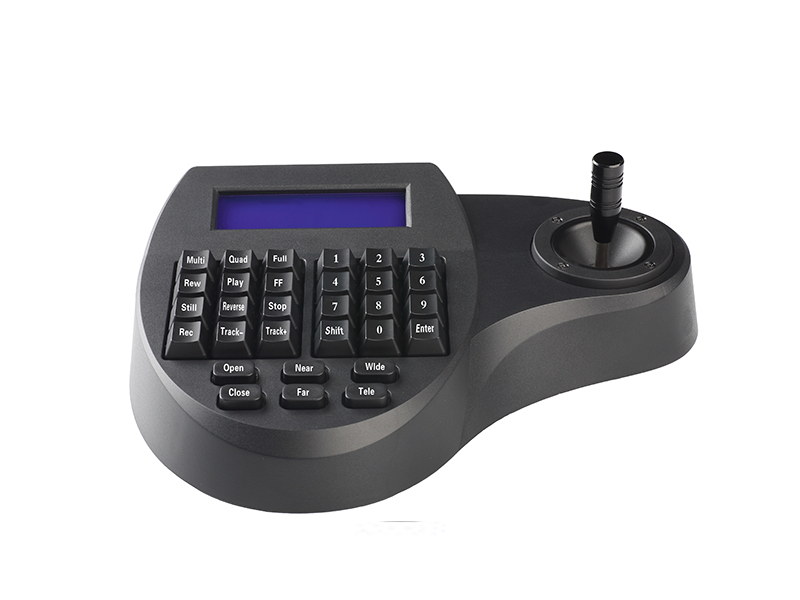

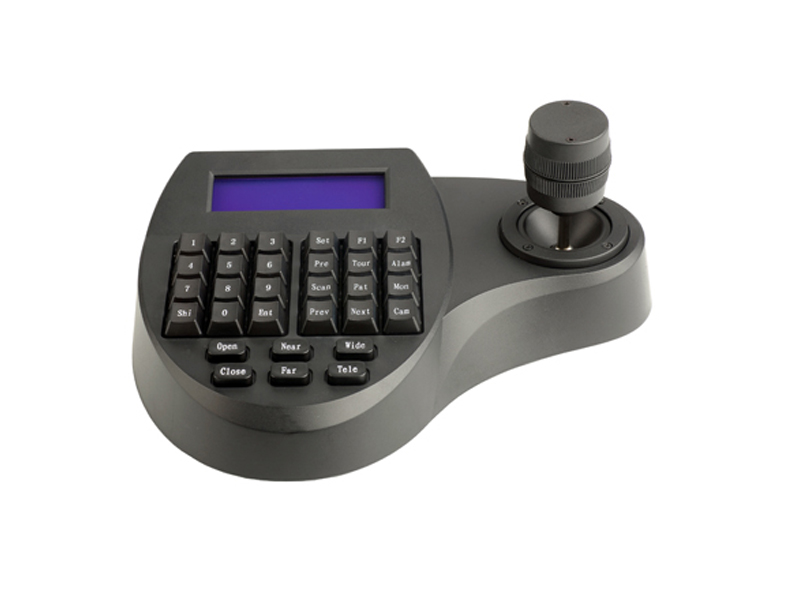

◆   3-axis mini controller keyboard

  ◆   Picture in the real time, and control the high speed dome

  ◆   Mini and Concise appearance

  ◆   Built-In multi-protocols and optional baud rate

  ◆   OSD Menu, LCD display, powerful functions, can be worked with other display and control equipment,6

  ◆   Support 4pcs keyboard linkage, each keyboard can supports 32pcs domes at most

  ◆   Expediently and comfortably use according to ergonomics design

  ◆   Can show display the command menu, protocol, current some ID, output monitor ID, joystick status

  ◆   3-axis joystick can control the speed dome of pan/tilt and zoom-in/out

  ◆   Built-in multi protocols and baud rate, support all the shortcut key of dome

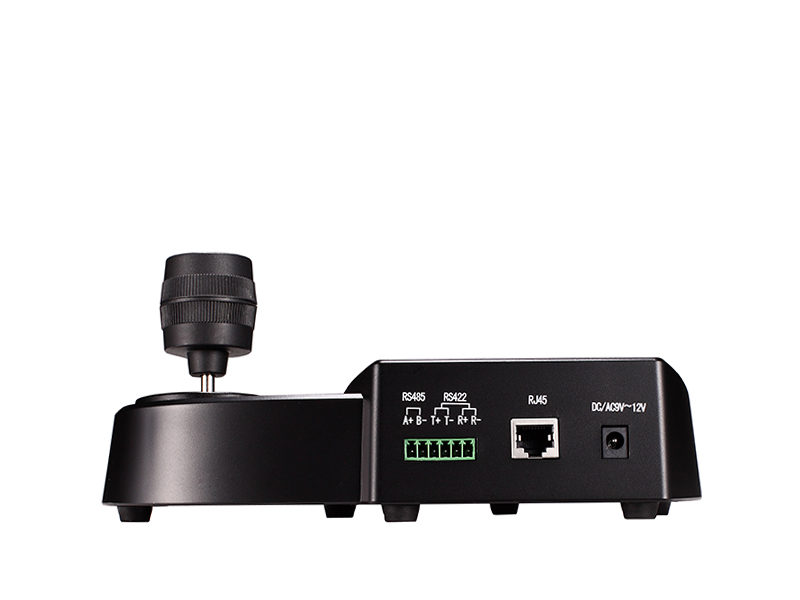

  ◆   Type of connection: 6Pins Interface, RJ45

  ◆   Communication mode: RS485 /RS 422

  ◆   Transmission distance: 1,200M

  ◆   Communication baud rate: 2,400bps, 4,800bps, 9,600bps, 19,200bps

  ◆   Control protocol: PELCO P/D

  ◆   Power supply: DC 9V-12V±10%

  ◆   Power consumption: 5W

  ◆   Environmental temperatures: -10℃ ~ 50℃

  ◆   Humidity: 0-95%, no-condensation

K7203 Manual
