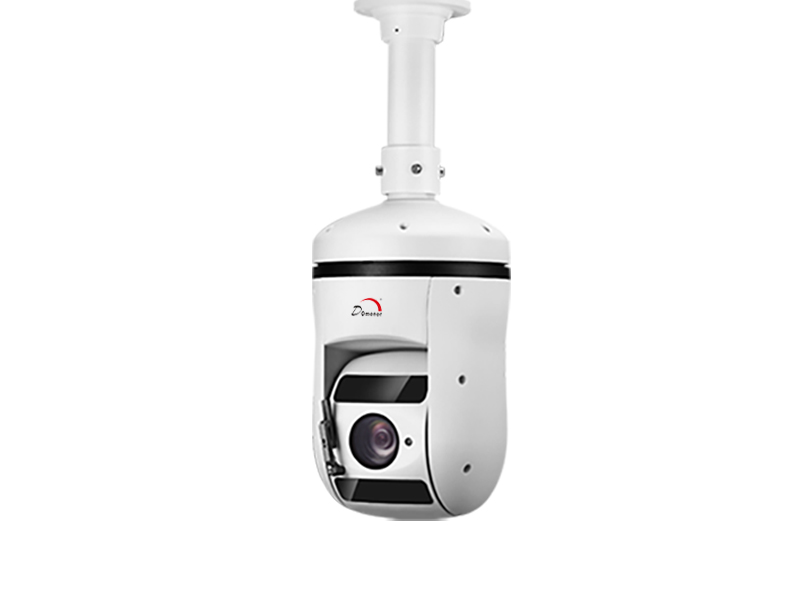

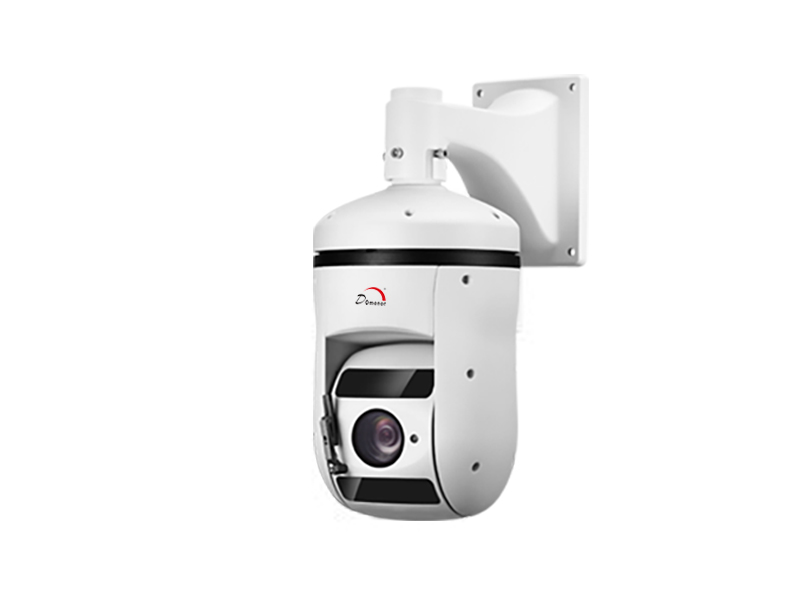

D83 new outdoor IR PTZ dome camera|NETWORK CAMERAS|Domenor Supply:info@domenor.com

◆ Robust structure, vandal-proof,anti-impact

◆ Clear Night visibility of IR LED light over 80M.

◆ IP/ SDI/TVI/AHD/analog capability

◆ With wiper

◆ Built-in lightning proof, surge proof and wave proof

◆ Built in heater for -40℃ temperature

◆ 360°continuously pan rotation

◆ Tilt range +90~-15°

◆ Preset positioning, Patterns, and multiple scan modes

◆ Designed for minumal maintenance

◆ Excellent heat-dissipation and long lifespan

◆ IP66 all-weather design

◆ Customized capability

◆ Anti-freezing and monition tracking capability

◆ Dual video output capability(SDI/IP, Analog/IP)

◆ PoE capability for indoor using Robust structure, vandal-proof,anti-impact


Camera Module
Sensor	1/2.8 Type Exmor CMOS sensor
Video output	1080P60/50,1080P30/25,1080I/60(30FPS),1080I/50(25FPS),720P60/50
Scan system	progressive scanning
Sync Model	Internal
Effective pixels	2Megapixel
Resolution	2200(H) X 1125(V)
Optical Zoom	20X
Focus length	4.7mm(Wide)~94mm(Tele)
Minimum focus object	1M
View of angle	Horizontal: 58.2°(Wide)~2.85°(Tele)
View of angle	Vetical: 45.2°(Wide)~2.09°(Tele)
Iris	Auto
Focus	Auto/Manual
Minimum illumination	Color:1.0 Lux B/W :0.05Lux
White balance	Auto/Manual
BLC	ON/OFF
SNR	>50db
DNR	Support
shutter	1/60~1/10000
Video output range	1.0+ VP-P
Video output interface	LVDS
WDR	ON/OFF
Mirror	Support
Auto Flip	Support
Communication speed	9600bps
Communication interface	RS232（TTL）
Protocol	VISCA
Specification
Manual speed	Pan：0.4°- 240°/s
Manual speed	Tilt：0.4°- 120°/s
Preset speed	Pan 240°/s，Tilt 120°/s
Rotation	Pan:360°continuously,Tilt:105°(-15°～+90°) or(-30°︿+90°) with auto-flip no blind spot
Speed proportion	Auto-adjust speed per the focus length
Preset	128presets titles can be edited
Auto Flip	Tilt down 90°,with auto-flip 180°
Scan	355° programmable,4 scans
Display zone	8 programmable zones with titles
Alarm	1 alarms input/1 alarms output
Sync	Internal/external
Decoder	Built-in
Interface	Female BNC（HD-SDI）／RJ45 （IP）
Remote controlling	RS485/422 BUS,Manchester,BI-PHASE,Coaxial Video Control
Protocol	PELCO-D、PELCO-P、VCL、VICON、SAE、HUNDA about 17protocols
Baud rate(RS485)	9600bps
ID range	1～254
Environment temperature	-40℃～+60℃
Environment humidity	0～95%（non condensation）
Protection grade	IP66, water proof housing,4000V ligtning proof surge proof
Power supply	AC24V
Power consumption	50W

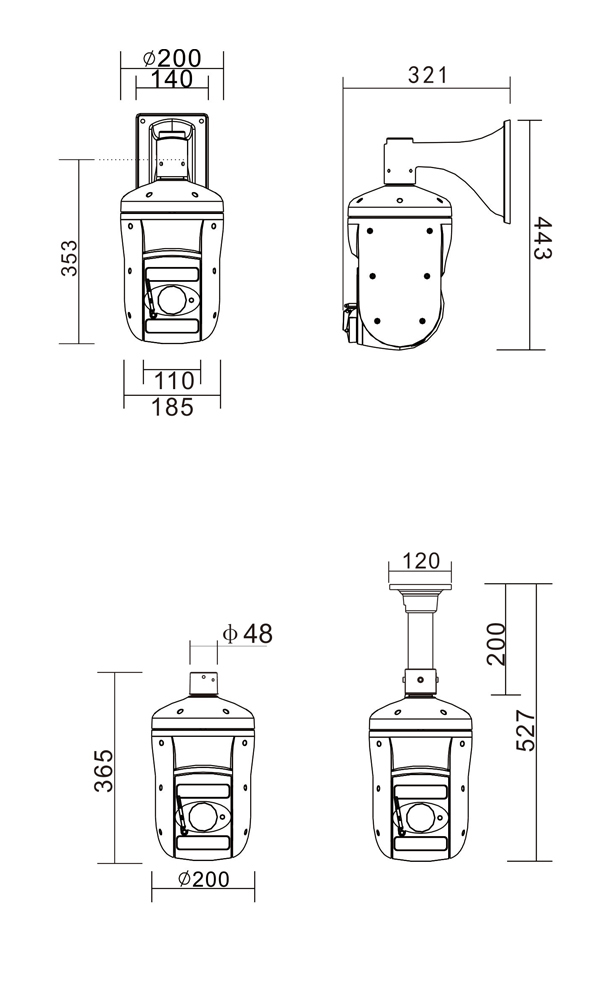

Dimension(HXΦ)	353*Φ200mm(H)
Gross weight（no bracket）	9.5KG
IP Specification
Video compression	H.264 Main Profile; MJPEG/JPEG Baseline compression
Resolution	Master streaming: 1920*1080, 1-25(30) fps/sec
Resolution	Second Streaming: 640480,1-25(30)fps/sec;320240,1-25(30)fps/sec;160*112, 1-25(30)fps/sec
Video Bit rate	32Kbps~16Mbps, Support CBR/VBR
Information Display	Dome ID、Presets title、Scan/Tour/Pattern、Zoom Times、Position Direction of camera、Alarm indirection、Date& time
Audio Compression	G.711, G.726 , Support 32K Stereo
Data Storage	VIDEO & Image
Recording	Manual、Auto(circulation、Time、Alarm on/off、Move detection)
Alarm Output	FTP,E-MAIL, Explorer, Management Software
Network Protocol	TCP/IP、UDP、 RTP、 RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP
ONVIF Protocol	YES
Remote View	Computer /PC : IE6.0 or UP, Max 10 User
Remote View	Mobile Phone: Support Windows Mobile、Symbian、 Iphone、Android Platform
Remote controlling	RJ45

?
