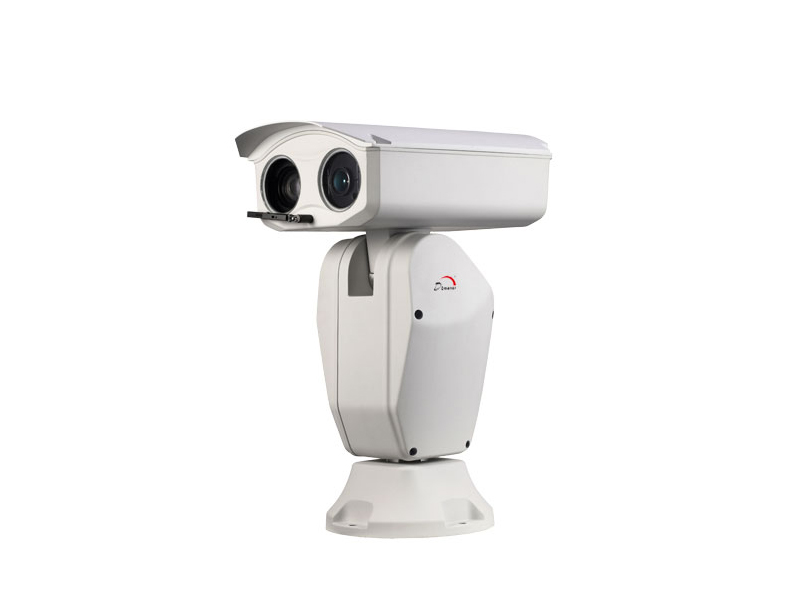

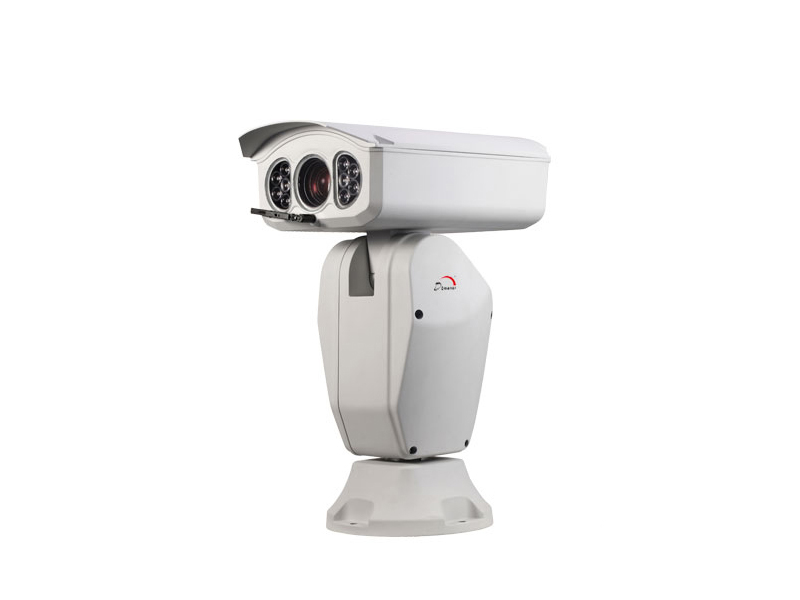

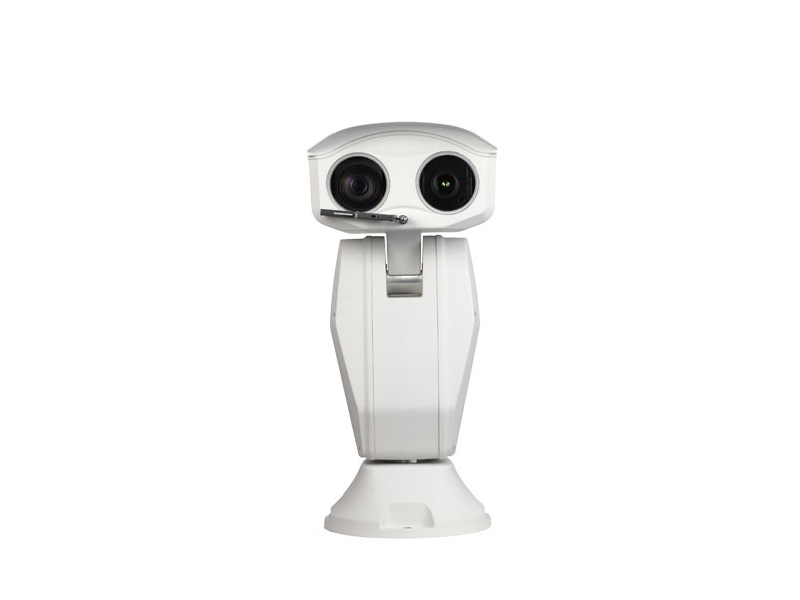

D84 PTZ Camera


E-mail:info@domenor.com enquiry

  ◆    Transmission formats: 1080p/ 720p, transmission distance over 400M.

  ◆    Humanized design, easy installation& maintenance.

  ◆    128 presets (titles can be set); Tour is based on presets, speed & park time of presets can be set.

  ◆    1 Alarm Input/1 Output.

  ◆    8 programmable zone with titles,4 pattern( patterned scan),record time no less than 180 seconds.

  ◆    4 scan, support scan between left and right limit at an appointed speed.(at this time dome camera still support zooming, tilt operation

  ◆    Built-in OSD menu, enable changing and displaying Dome information and parameter, setting and calling presets, tour, scan, pattern, camera mode, etc.

  ◆    Park time function, can auto-call presets or start-up tour, pattern, scan and display areas after dome idle for a period of time

  ◆    Real time function, preset, scan etc action runs based on time sections pre-setting by OSD menu.

  ◆    Temperature display function, can survey the temperature inside the dome.

  ◆    Display horizontal and vertical position of the PTZ camera, and the multiples of the lens.

  ◆    Privacy masking zone, you can set masking frame  when there is a private zone display on screen.

  ◆    Communication (support Rs485, Manchester, BI-PHASE code, coaxial video control).

  ◆    IP66 all-day defend cover, built-in constant temperature device.

  ◆    Built-in TVS4000V lightning-proof, surge-proof and wave-proof.

  ◆    Optional freezing rain-proof function (additional power consumption 25W).

  ◆    Working temperature -40℃~+60℃
