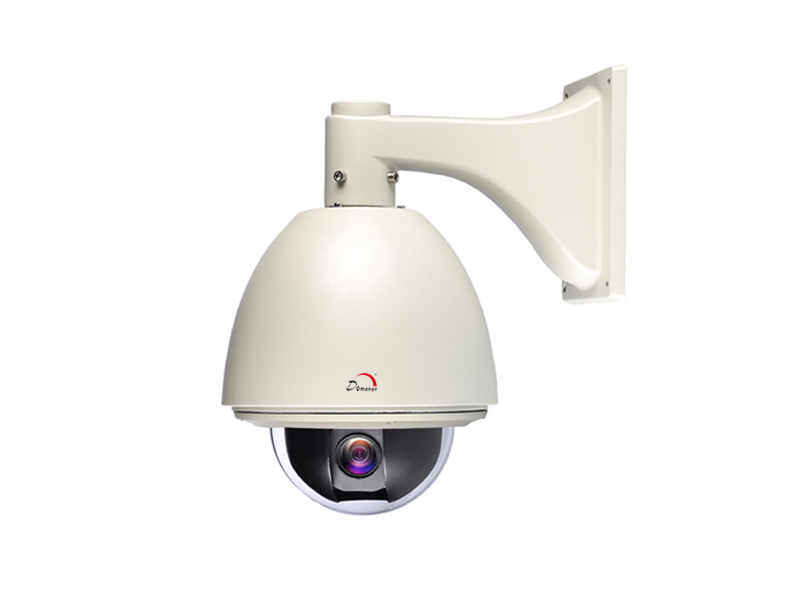

D86 High Speed Dome|ANALOG PTZ DOME CAMERA|Domenor Supply:info@domenor.com

◆ Preset speed 320°/S

◆ Pan （0.4°～320°/S）Tilt（0.4°～150°/S）,Continuously 360°；tilt 0～90° with auto-flip

◆ 7 Alarm Input/2 Output; can call Preset or Pattern/Scan after alarm.

◆ 128 presets (titles can be set); Tour is based on presets; Speed & park time of presets can be set；

◆ Human design, Faison structures, Easy installation & Maintance

◆ Built-in OSD menu，8 programmable zones(titles can be set); 4 patterns, each record time is more than 180 seconds;

◆ Park action function, can auto-call presets or start-up tour/pattern & scan after dome idle for a period of time;

◆ Real time function, preset, scan etc action runs based on time sections pre-setting by OSD menu.

◆ Temperature display function, can survey the temperature inside of dome.

◆ Fan enable function, through pre-setting the temperature to start-up the fan.

◆ Built-in TVS4000V lightning-proof, surge-proof and wave-proof


Camera Module
Signal system	PAL / NTSC
Imaging element	1/4″Sony Exview HAD CCD
Scanning system	2:1 Interlacing
Effective pixel	752(H)*582(V)
ZOOM	26X Optical,12X Digital
Scan Frequency	Pan 15.625KHz/ Tilt 50Hz
Resolution	Color 480TVL B&W 570TVL
Mini illumination	Color 0.7Lux，B&W 0.01Lux
Focus Length	3.5mm ～ 91mm
Angle of view	W54.2°/ T2.2°
Iris	Auto/Manual
Focus	Auto/Manual
White balance	Auto/Manual（R/Bgain adjustable）
Back light compensation	Off / Auto
S/N ratio	≥50db
Electronic shutter	1/1-1/10,0000s
Video output	1.0±0.2Vp_p
Video output interface	female BNC
Wide dynamic range	Yes
Privacy masking zone	24
Specification
Manual speed	Pan（0.4°～320°/S）
Manual speed	Tilt（0.4°～150°/S）
Preset speed	320°/S
Rotation	Continuously 360°；tilt 0～90° with auto-flip
Speed Proportion	As the length of focus, to auto-adjust the speed
Preset	128 preset, title can be edited
Auto-flip	Tilt down 90°, with auto-flip 180°
Scan	355°programmable ，4 scan
Display zone	8 programmable zones with titles
Alarm function	1 alarm input/1 output
Sync Model	Internal
Decoder	Built-in
Video output	Female BNC（HD-SDI）／RJ45 （IP）
Romote controlling	RS485/422 BUS、Manchester 、BI-PHASE、Coaxial Video Control
Baud rate (RS485)	9600
ID range	1～254
Temperature	Indoor -10℃～+50℃；Outdoor -40℃～+60℃
Humidity	0～95%（non-condensation）
Protection grade	IP66, TVS4000V lightning-proof, surge-proof, wave-proof, all-day defend cover
Power supply	AC 24V ±4V
Power consumption	Indoor 12W Outdoor 50W

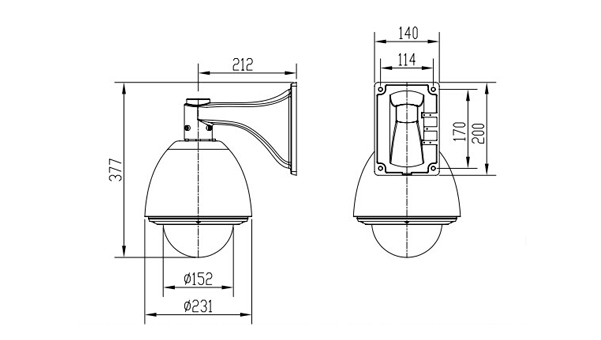

Dimension (D x H)	Φ231×270(H)mm (Model:D8601 Outdoor)
Net weight	8.3kg (Model:D8601 Outdoor) 1kg(Wall bracket)
