◆ Support HDSDI     input(:720P/50.720P/60.1080i/50.1080i/60.1080P/25.1080P/30)

◆ Support ABS,VGA　signal input　

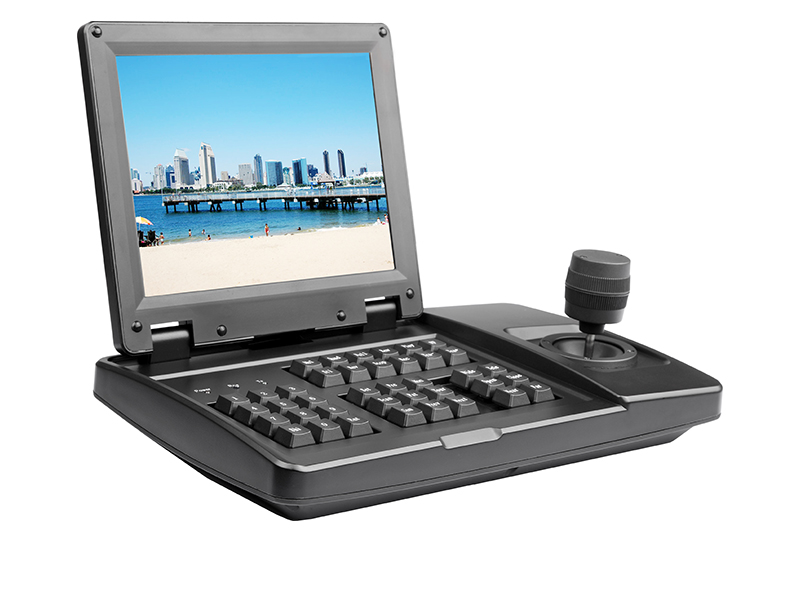

◆ 8 Inch High definition TFT -LCD   Screen Can show the image that   returns from the  front-end in   real time　

◆ HDSDI/NTSC   Image is adjustable automatically, No Manual   setting

◆ OSD edible menu   in Chinese and English can set the kinds of   Protocols and it   is easy to operateOSD

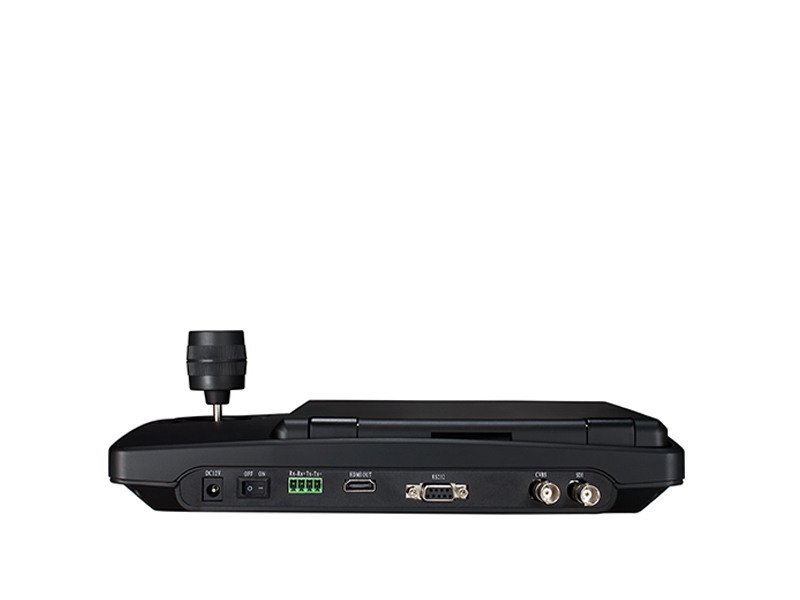

◆ Communication   mode: RS232,RS485, RS422,USB2.0　

◆ Support ABS,VGA　signal input 800*600 resolution.   And control high speed dome   from    different factories   and      mainstream DVR and Pelco matrix.

◆ Independet   interface Panel and expansively, which can meet the   requirement of   markets.　

◆ Extra-Low   consumption, 1W for standby mode, foldable structure   design can show   the best view screen

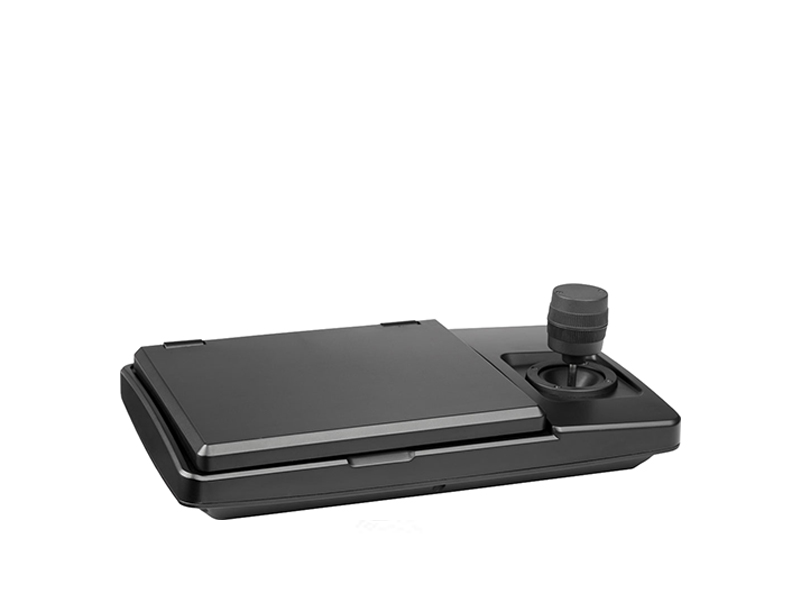

◆ Portable   foldable HD visual keyboard, show the camera picture   in real time,

Parameter

Display screen

8"     TFT-LCD

Angle of view for screen

0°~135°

Video input

composite     video (NTSC / PAL ), VGA, HD-SDI

Communication mode

RS232,RS485,RS422,USB2.0

Communication distance

1200M

Communication Baud Rate

2400bps,4800bps,9600bps,19200bps

Control Protocol

Pelco       P,Pelco D, VISCA,DAHUA,HAIKAN

Power supply

DC(       9V～12V)±10%

Electric Current

350mA

Battery

Ni-MH        700mAh

power consumption

4.2W

Environmental Temperature

 -10℃ -   +50℃

Humidity

0~95%(No-Condensation)

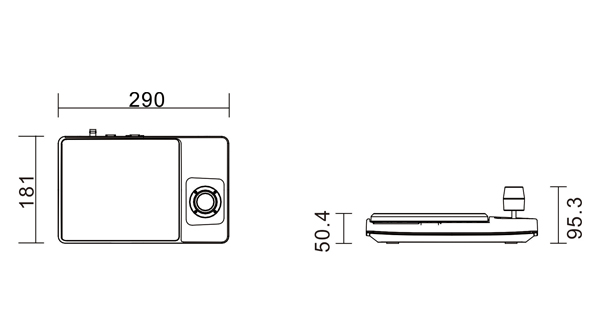

Dimenison (mm)

290(L)*181(W)*95(H)mm

Gross weight

1.6Kg
